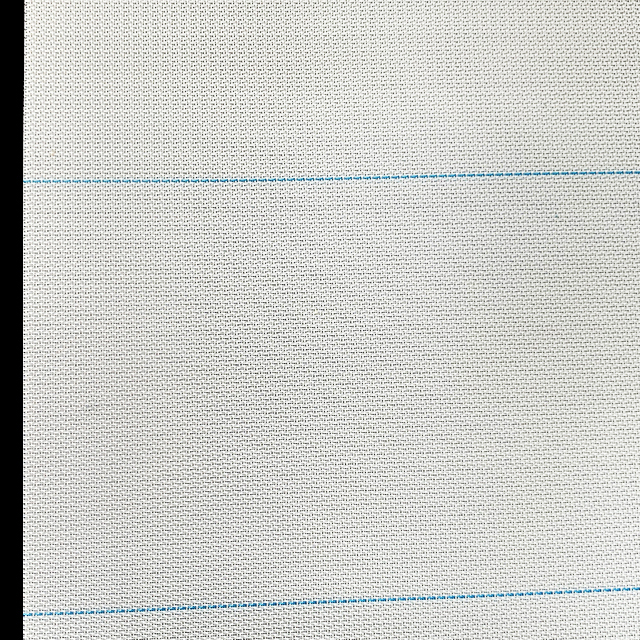

Forming Fabrics

  • REKING

  • Hebei

  • ISO9001

  • Xingang, Tianjin

  • 200 Set/Sets

  • 3000 Set/Sets per Month

  • L/C,T/T

Availability:
Quantity:

LM`0P%%0WKLP_1906QOKRQ

Polyester molding network according to the weaving series division, can be divided into four mechanized single-layer network,five kinds of single-layer network, eight kinds of single-layer network, seven kinds of double network, eight kinds of double network,eight. Two layers of net, sixteen in two and a half and three layer network series.



*four  single layer fabric is suitable for making culture paper,  printing paper,  packaging paper,  *five single layer fabric is suitable for making toilet paper,  cultural papaer, packaging paper.  *eight  single layer fabric is suitable for gram weight larger bag paper,  kraft paper,  cardboard,  corrugated paper,  liner board paper.   *seven double layer is suitable for quality printing paper,  tissuepaper.


*eight double layer fabric is suitable for quality printing paper,  plastic sheet printing paper,  tissue paper and paperboard face, pulp, pulp and other.  *eight harness, sixteen fully two layer and three layer fabric is suitable for semi high speed paper machine, the production of various types of paper.

Forming-Fabrics

Polyester forming fabric refers generally to the polyester fabrics woven with polyester fiber in spiral and heddle for various industrial uses in producing of paper, corrugated paper, paper for train fare, filtration and separation in environmental protection, pharmaceutical, mine, metallurgy, machinery, airspace and other fields.

Our committed staff constantly seeks innovative and more effective ways to do things better and has gained experiences and skills in our specific fields. While always pursuing the latest technologies and proven methods, our work is professional and consistent with our certification to ISO 9001-2000.

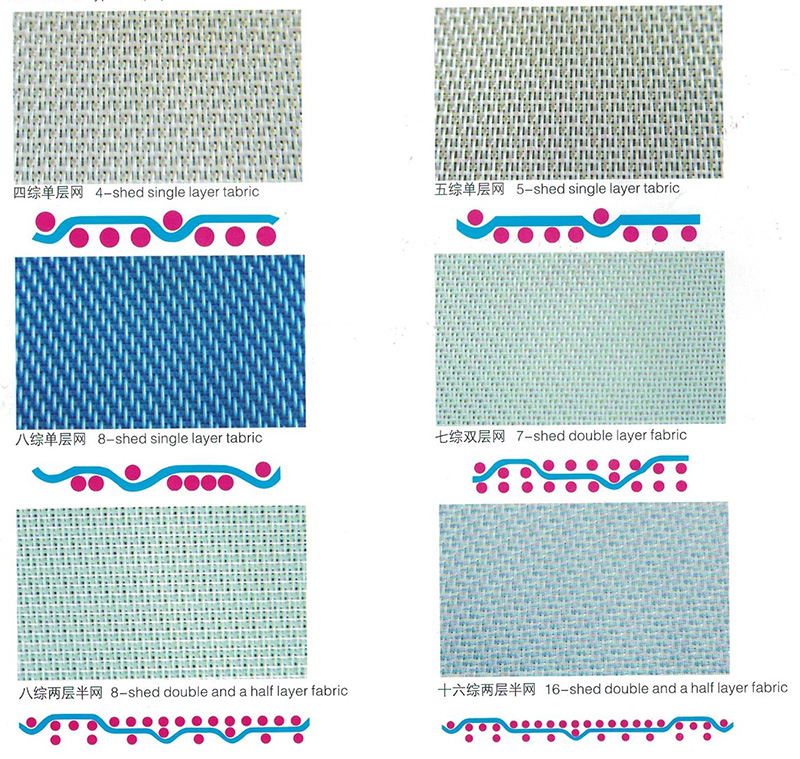

According to the weaving, polyester forming fabric can be divided into 4-shed, 5-shed,7-shed, 8-shed,16-shed and 24-shed etc. According to the category, it can be divided into single layer fabric, double layer fabric, two and a half layer fabric and three layer fabric.4-shed single layer fabric is suitable for making culture,printing and packing papers etc.5-shed single layer fabric is suitable for making health, culture and packing papers etc. 8-shed single layer fabric is suitable for making high basic weight corrugated and packing papers etc.16-shed double and a half layer fabric is suitable for making quality printing paper, tissue paper and surface pulp, inner pulp and base pulp of the board paper etc. Multi-shed three-layer fabric is suitable for making quality printing paper, tissue paper and cigarette paper etc.

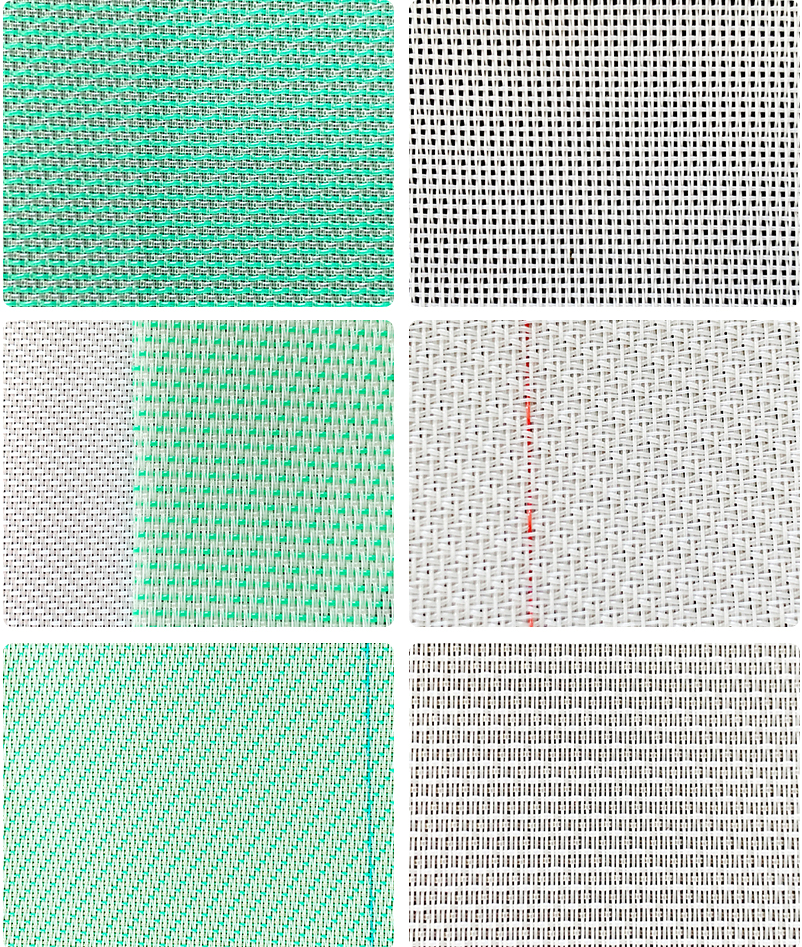

拼图2

Polyester Forming Screen Series Products Data

Weaving Series and Types

Model of Fabric

Thread Diameter
mm

Density (pieces
/cm)

Strength
(N/cm)

 Thick-
ness mm



Air

Perm
-eation m3/m2h

 Max. Elongation
at 50N/cm

Warp

Weft

Warp

Weft

Mesh Surface

Inserting Place

Four-Shed Single Layer Forming Screen

27254

0.20

0.25

30

22

=600

=400

0.49

8000

0.60%

27254-1

0.20

0.25

30

23

=600

=400

0.495

7500

0.60%

27254-2

0.20

0.25

30

24

=600

=400

0.50

7000

0.60%

27274

0.20

0.27

30

21.5

=600

=400

0.51

7800

0.60%

27274-1

0.20

0.27

30

22.5

=600

=380

0.515

7300

0.60%

31204

0.18

0.20

35

28

=600

=380

0.43

7500

0.68%

31204-1

0.18

0.20

35

30

=600

=380

0.43

7000

0.68%

31204-2

0.18

0.20

35

30.5

=600

=380

0.43

6500

0.68%

Five-Shed Single Layer Forming Screen

28205

0.20

0.20

30

27.5

=600

=400

0.46

6800

0.60%

30205

0.17

0.20

32

28.5

=500

=350

0.41

7100

0.60%

30175

0.17

0.17

32

29.5

=500

=350

0.39

6600

0.60%

31215

0.20

0.21

35

32

=600

=400

0.48

7000

0.60%

Eight-Shed Single Layer Forming Screen

25358

0.22

0.35

28

19.5

=700

=500

0.85

9000

0.65%

25388

0.22

0.38

29.5

19

=700

=500

0.87

8500

0.65%

27358

0.22

0.35

29

20

=700

=500

0.85

8500

0.65%

27388

0.22

0.38

31.5

19

=700

=500

0.87

8000

0.65%

Seven-Shed Single Layer Forming Screen

50207

0.20

0.20/0.22
0.22(t66)

54.7

36.6

=800

=600

0.71

5800

0.60%

56177

0.17

0.17/0.20
0.20(t66)

60

48

=800

=600

0.635

5200

0.60%

57177

0.17

0.17/0.22
0.22(t66)

65.7

49.6

=800

=600

0.635

4550

0.60%

64177

0.15

0.17/0.17
0.17(t66)

70

50

=800

=600

0.59

5200

0.60%

Eight-Shed Double Layer Forming Screen



56188

0.17

0.18/0.20
0.20(t66)

61.3

51.2

=850

=600

0.65

5700

0.60%

60188

0.18

0.19/0.20
0.20(t66)

66

49

=900

=650

0.68

4750

0.60%

62188

0.15

0.16/0.19
0.19(t66)

70.5

50.5

=900

=650

0.60

6200

0.60%

Eight-Shed and Sixteen-Shed Double and A Half Layer Screen Data

Model of Fabric

Thread Diameter mm

Density/cm

Air
Permeation
m3/m2h

Warp

Weft (Up/Lower)

Warp

Weft

2B3316

0.28

0.20,0.27/0.40,0.40

37~38

40~41

6000

2B3316-1

0.28

0.20,0.27/0.45,0.45

37~38

37~38

6000

2B3316-2

0.28

0.20,0.27/0.45,0.45

37~38

31~32

8000

2B5008

0.17

0.13,0.18/0.32,0.32

55~56

48~49

6500

2B5216

0.17

0.17,0.22/0.27,0.27

57.5~58.5

50~51

5300

2B5216-1

0.17

0.19,0.22/0.35,0.35

57.5~58.5

43.5~44.5

6200

2B5408

0.17

0.13,0.20/0.35,0.35

59~60

43~44

6300

2B5416

0.17

0.13,0.20/0.35,0.35

59.5~60.5

42~43

6000

2B5608

0.17

0.13,0.18/0.22,0.22

61~62

52~53

5700

2B5608-1

0.17

0.13,0.20/0.25,0.25

60~61

54~55

5600

2B5608-2

0.17

0.13,0.20/0.32,0.32

60~61

48~49

6000

2B5608-3

0.17

0.13,0.20/0.35,0.35

60~61

47~48

5600

2B5608-4

0.17

0.13,0.20/0.32,0.32

61.5~62.5

55.5~56.5

6900

2B5608-5

0.18

0.13,0.18/0.22,0.22

62~63

53~54

6800

2B5608-6

0.18

0.13,0.20/0.25,0.25

61~62

61~62

5940

2B5608-7

0.15

0.13,0.18/0.25,0.25

62~63

53~54

6600

2B5608-8

0.15

0.13,0.18/0.32,0.32

61~62

56~57

6400

2B5608-9

0.17

0.13,0.18/0.35,0.35

61~62

51~52

6900

2B5608-10

0.17

0.13,0.22/0.35,0.35

61.5~62.5

48.5~49.5

5800

2B5808

0.17

0.13,0.18/0.22,0.22

63~64

53~54

6500

2B5808-1

0.17

0.13,0.20/0.25,0.25

63~64

54~55

5000

2B5808-2

0.17

0.13,0.20/0.25,0.25

63~64

51.5~52.5

5100

2B6208

0.17

0.13,0.18/0.20,0.20

68~69

56.5~57.5

5500

2B6208-1

0.17

0.13,0.18/0.20,0.20

68~69

54.5~55.5

6000

2B6208-2

0.17

0.13,0.18/0.23,0.23

63~64

51.5~52.5

5100

2B6216

0.17

0.13,0.18/0.23,0.23

68~69

61.5~62.5

5600

2B6216-1

0.17

0.13,0.20/0.25,0.25

68~69

64.5~65.5

6400

2B6216-2

0.17

0.13,0.18/0.25,0.25

68~69

51.5~52.5

5400

2B6216-3

0.17

0.13,0.20/0.35,0.35

68~69

52.5~53.5

5500

2B6216-4

0.17

0.13,0.20/0.35,0.35

68~69

49.5~50.5

8000

2B6216-5

0.17

0.13,0.20/0.35,0.35

68~69

46.5~47.5

7000

2B6408

0.17

0.12,0.18/0.20,0.20

70~71

57~58

6200

2B6408-1

0.17

0.12,0.18/0.20,0.20

70~71

65~66

6500

Special specifications can be produced by the customer's requirements.
