Belt filter press

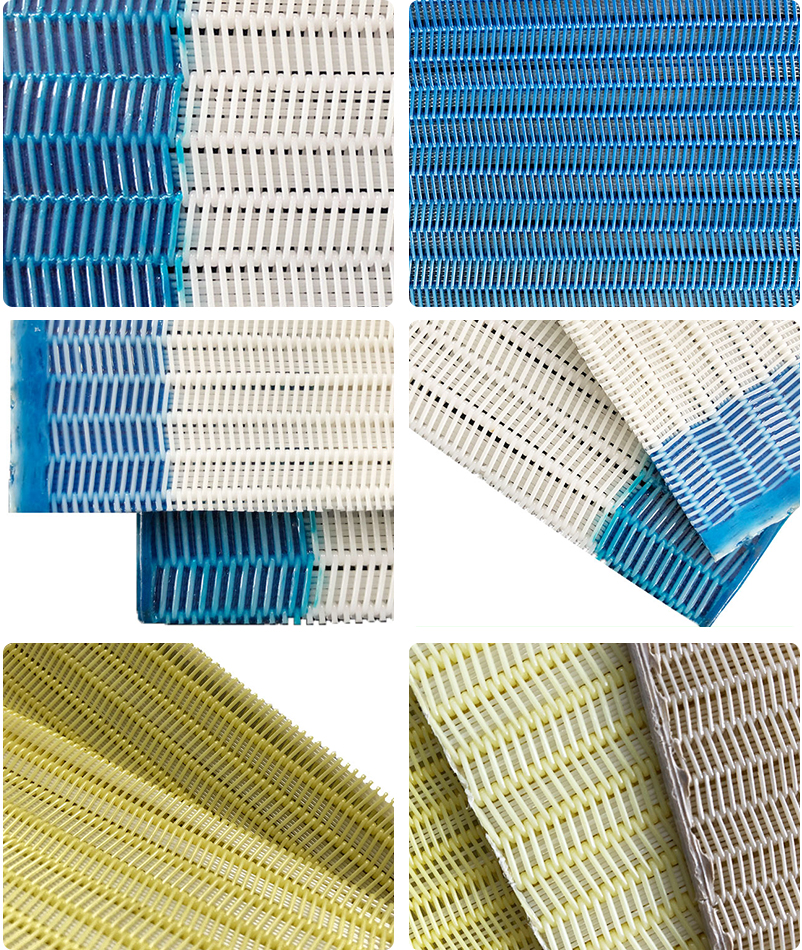

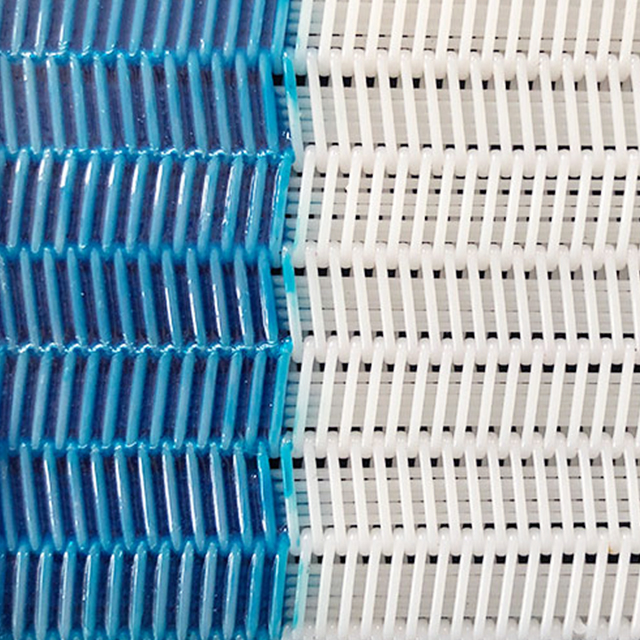

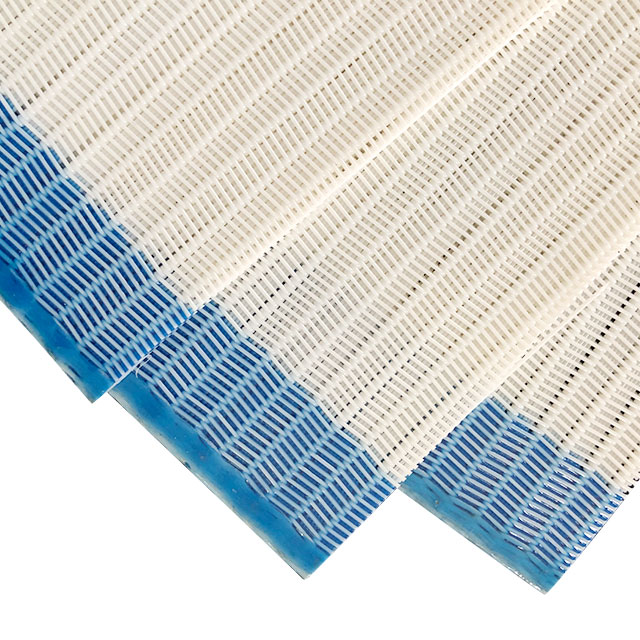

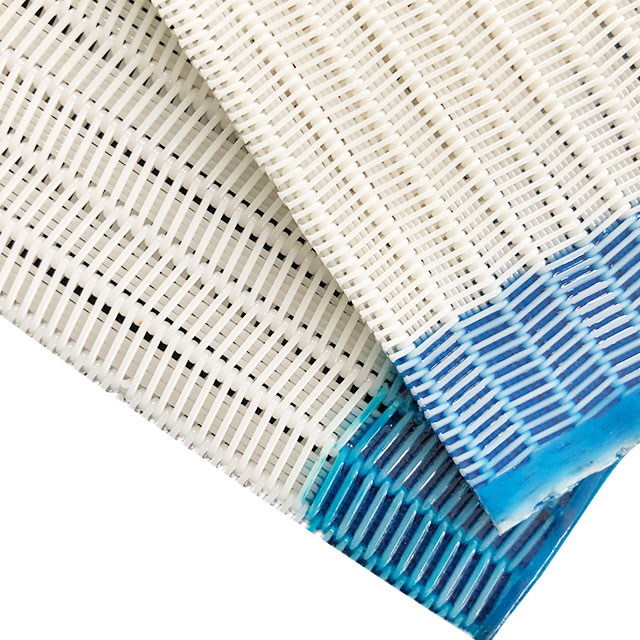

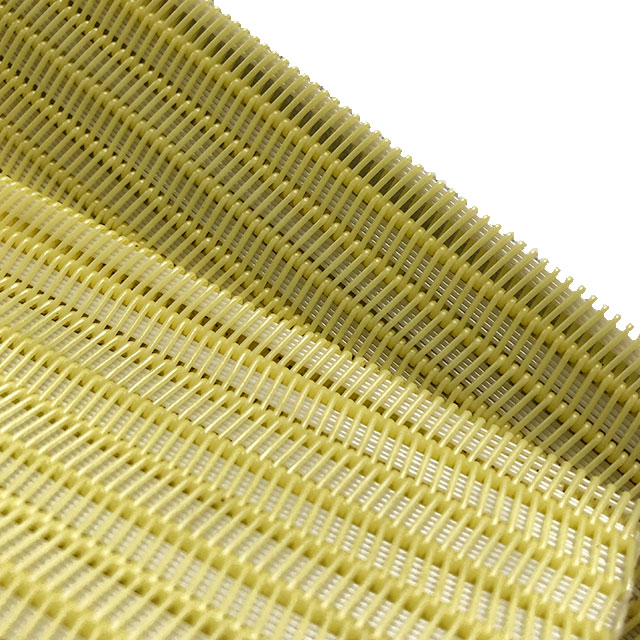

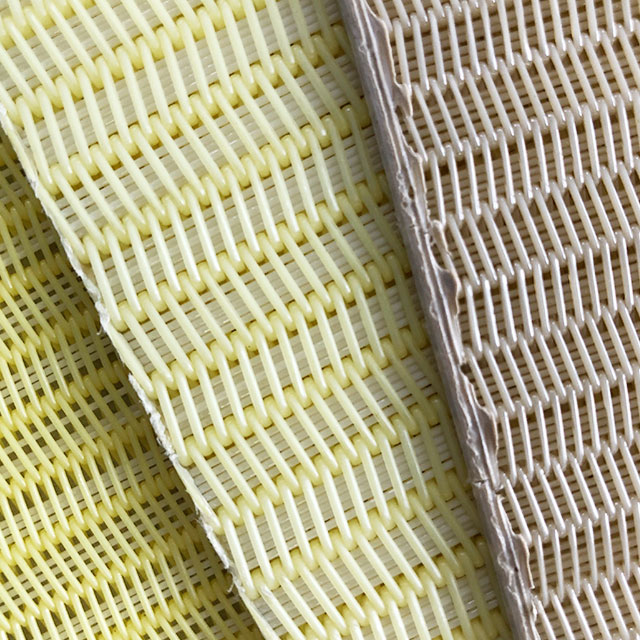

Spiral pressure filter is add filler wire spiral ring, the porosity decreases, and reducing the cost of materials on the surface of the mesh.
Mainly used for press filter with belt type dryer.
Suitable for food, pharmaceutical, chemical, alcohol, vinegar industry, coal, mining, paper pulp washing, sludge dewatering and drying industry.
A belt filter press is an industrial dewatering machine which separate liquids from bio solids/sludge. Another type of belt filter is the vacuum belt filter, this is usually a very large and wide installation for processing high volumes. These type of belt filters are used within the water treatment industry, sewage treatment industry, food industry, mining industry, mineral industry, paper industry, pharmaceutical- and chemical industry. Those polyester wire mesh belts are built to withstand severe conditions like humidity and tension.
Belt filter press in operation
Belt filter presses produce mechanical pressure on the slurry by sandwiching the sludge between two monofilament wire mesh belts which squeeze the water out of the sludge. The woven wire mesh belts within these belt filter presses are on high tension and follow a specific path along various rolls with a decreasing size of diameter. When the woven wire mesh belt passes the final pair rollers at the end of its path, the filter belts are separated where the filter cake (result of the pressed sludge) is scraped off, and ends up in a receiving container.
The belt filter press can basically be divided into three main areas:
1. The gravity dewater area where sludge is draining freely from water by means of gravity on a porous filter cloth belt/woven wire mesh belt
2. The wedge area where the remaining slurry is bought together by means of rollers and filter cloth
3. The pressure area where medium to high pressure is applied on the sludge in order to drain the solids intensively
网号 Type | 螺旋环宽度 Spiral loop width mm | 单丝直径 Wire Diameter(mm) | 强度 Tensile Strength (N/cm) | 网重 Weight Kg/m2 | 厚度 Thickness mm | 透气度 Air Permeability m3/m2h | 透气度 CFM 127/pa | ||
螺旋环单丝 Spiral wire | 连接丝 Connection wire | 填料丝Filter material monofilament | |||||||
小环 5080A1 | 5.2 | 0.50 | 0.80 | 0.60*3 | 1800 | 1.50 | 2.1 | 4480 | 280 |
中环 6890A1 | 8 | 0.68 | 0.90 | 0.80*4 | 2000 | 2.0 | 2.45 | 6080 | 380 |
中环 6890B1 | 7.15 | 0.68 | 0.90 | 0.90*3 | 2000 | 1.90 | 2.45 | 5760 | 360 |
中环6890B2 | 7.15 | 0.68 | 0.90 | 0.80*3 | 2000 | 1.85 | 2.45 | 7750 | 484 |
中环6890B3 | 7.15 | 0.68 | 0.90 | 扁丝2.1*0.80 | 2000 | 1.80 | 2.45 | 9000 | 563 |
中环6890B4 | 7.15 | 0.68 | 0.90 | 扁丝2.4*0.88 | 2000 | 1.85 | 2.45 | 8000 | 500 |
中环6890B5 | 7.15 | 0.68 | 0.90 | 导电碳丝 | 2000 | 1.60 | 2.45 | 10000 | 625 |
大环 9090A1 | 8 | 0.90 | 0.90 | 0.90*3 | 2300 | 2.30 | 3.03 | 7500 | 468 |
大环 90110A1 | 10 | 0.90 | 1.10 | 1.0*4 | 2000 | 2.40 | 3.15 | 6240 | 390 |
抗强碱 PA90110A2 | 10 | 0.90 | 1.10 | 1.2*3 | 2000 | 2.25 | 3.15 | 6240 | 390 |
大环 10090A1 | 8 | 1.0 | 0.90 | 1.0*3 | 2000 | 2.50 | 3.60 | 5000 | 315 |
大环 120130A1 | 1.2 | 1.20 | 1.30 | 1.2*3 | 2600 | 2.85 | 4.30 | 7500 | 468 |
