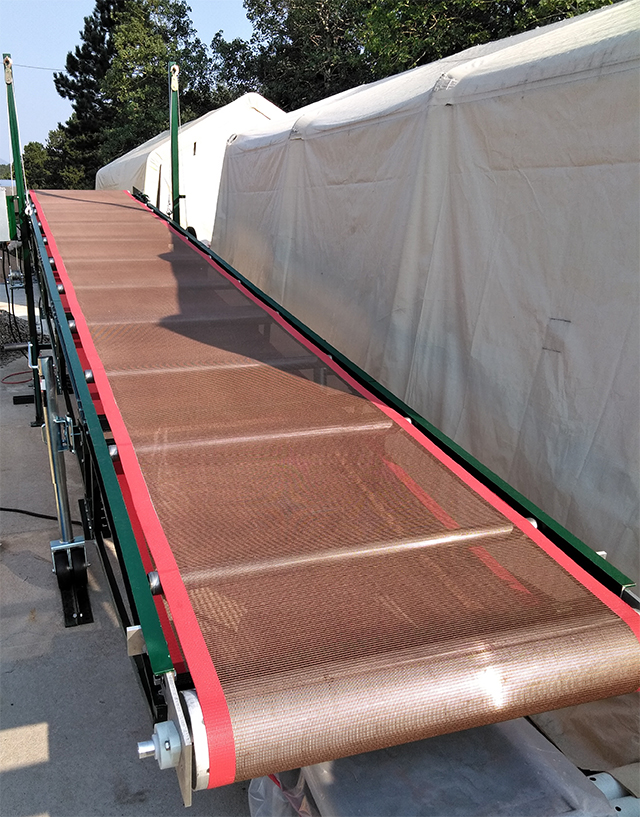

PTFE (Teflon Mesh Belt) grid drying room conveyor belt is made of suspended polytetrafluoroethylene (commonly known as plastic king) emulsion, impregnated with high-performance glass fiber mesh, is a high-performance multi-purpose composite new product.
Main features of PTFE (Teflon Mesh Belt) grid drying conveyor belt:
1, for -196 ° C ~ 300 ° C degrees, with weather resistance, anti-aging.
2, resistant to chemical corrosion, can withstand the corrosion of strong acid, alkali, aqua regia and various organic solvents;
3, non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4, dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5, anti-bending fatigue, can be used for smaller wheel diameter.
6, resistant to bright agents, non-toxic, almost resistant to all pharmaceutical items;
7. Breathability: The air permeability of the conveyor belt, the heat source consumption is reduced, and the drying efficiency is improved.
PTFE (Teflon Mesh Belt) grid drying room conveyor belt application range:
1. Textile, printing and dyeing: printing drying, bleaching and dyeing cloth drying, fabric shrinking drying, non-woven drying, etc. drying tunnel, drying room conveyor belt.
2, loose dryer, UV light solid machine, paper oil drying, UV drying, plastic products silk screen drying and other drying tunnels, drying room conveyor belt.
3. Other items: high-frequency drying, microwave drying, various food freezing and thawing, baking, heat shrinkage of packaged articles, drying of general moisture-containing articles, rapid drying of flux-type inks, etc.
item | hole size | material | thickness | weight | heat resistant | Most wide | tensile strength | remark |
6001 | 1×1MM | fiberglass | 0.5MM | 390g/㎡ | -70~260℃ | 4M | 1600/1500N/5cm | |
6003 | 4×4MM | fiberglass | 1.0MM | 500g/㎡ | -70~260℃ | 4M | 2100/1500N/5cm | single weft black |
6004 | 4×4MM | fiberglass | 1.0MM | 480g/㎡ | -70~260℃ | 4M | 2100/1500N/5cm | single weft coffee |
6007 | 4×4MM | fiberglass+kevlar | 1.2MM | 560g/㎡ | -70~260℃ | 4M | 3300/2800N/5cm | |
6008 | 4×4MM | fiberglass | 1.0MM | 570g/㎡ | -70~260℃ | 4M | 2800/1580N/5cm | |
6010 | 4×4MM | kevlar | 1.0MM | 460g/㎡ | -70~260℃ | 4M | 3500/3300N/5cm | |
6012 | 4×4MM | fiberglass | 1.0MM | 580g/㎡ | -70~260℃ | 4M | 2800/1500N/5cm | double weft black |
6013 | 10×10MM | fiberglass | 1.0MM | 450g/㎡ | -70~260℃ | 4M | 1100/1000N/5cm | Most big hole |
6014 | 0.5×1MM | fiberglass | 0.5MM | 420g/㎡ | -70~260℃ | 4M | 2200/1500N/5cm | Most big hole |
6015 | 2×2.5MM | fiberglass | 0.9MM | 470g/㎡ | -70~260℃ | 4M | 2200/1500N/5cm |
