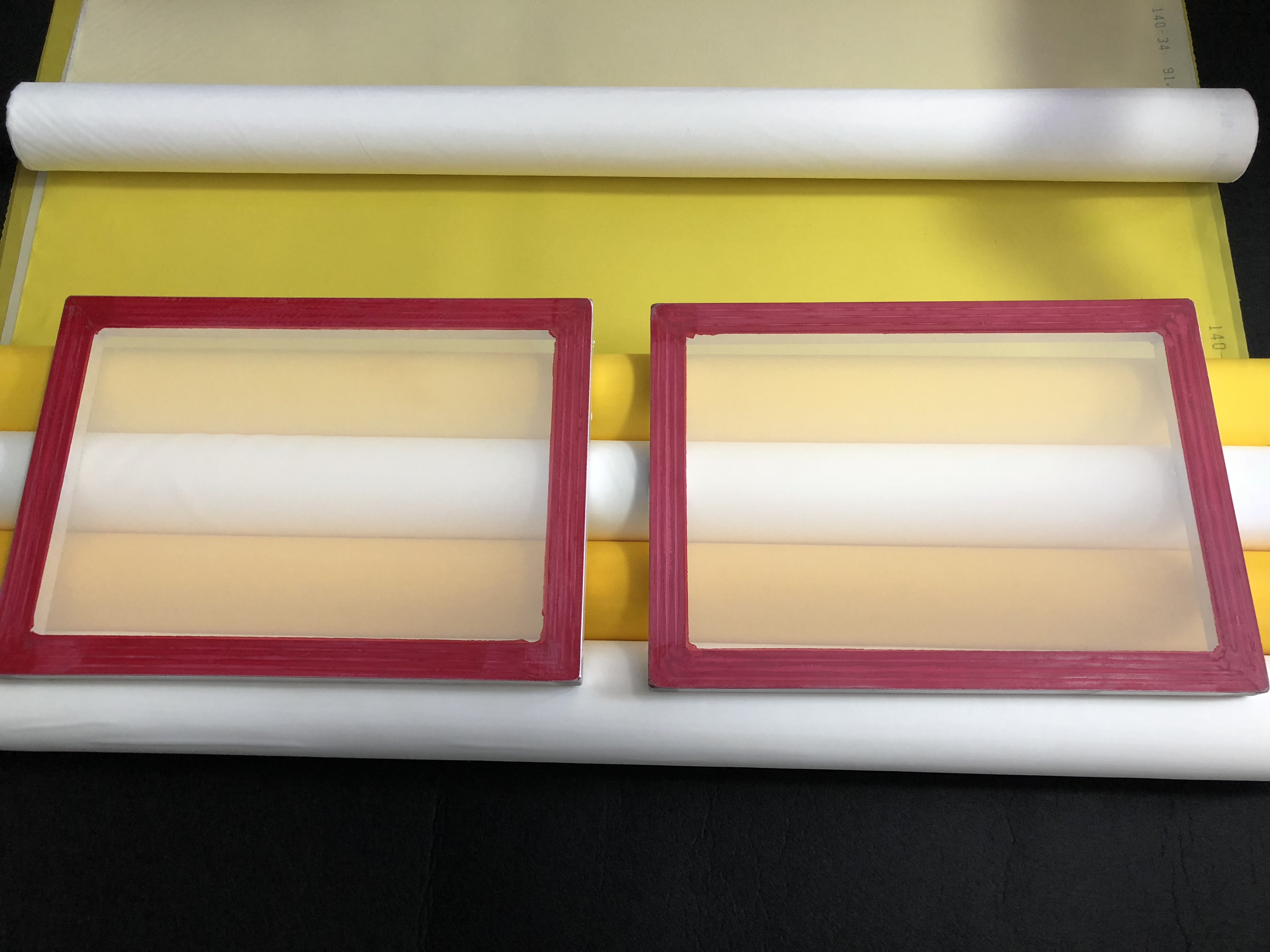

Polyester Screen Printing Mesh

We are factory of polyester screen printing mesh, nylon screen printing mesh,monofilament screen printing mesh. Specification from 10T to 180T,wide from 50cm to 3.7m .
We have white yellow black orange colors. All can made as your required specification. Tension is high can used for pcb, glass bottle,ceramic,VCD,DVD, textile and cloth printing.

  • R&K
  • China
  • ISO9001 FDA SGS
  • Xingang, Tianjin
  • 1m
  • 50000m per month
  • L/C,T/T,paypal,western union,Ali express
Quantity:

1-yijin

Polyester Screen Printing Mesh is one of the most advanced high-tech mesh fabric products in 1990s for screen printing.

With high quality material, Reking produces super quality polyester and polyamide bolting cloth for screen printing. Reking also have the most advanced testing instruments and technicians well trained to guarantee a reliable quality.

Monofilament Polyester creen Printing Mesh(Low-elongation) Features:

Low-Elongation Monofilament Polyester Screen printing mesh is what we are producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester:

Faster tensioning without damage to the threads;

Improved fabric strength;

Faster tension stabilization;

Higher tension threshold and breaking point;

Less tension loss during the stretching process;

Faster turnaround time from the screen room to the pressroom;

Improved registration due to stable tension;

Faster printing speeds.

2-yijin

CD/DVD Printing, Ceramic Decorating, Graphic Screen Printing, Package Printing, Printed Electronics, Printing on Glass, Solar Cell Printing, Textile Printing, etc.

Polyester Screen Printing Mesh Technical Details:

  Monofilament polyester mesh screen (low-elongation) is available with a wide range of mesh counts and has significant advantages compared with traditional polyester mesh.

  Nylon mesh has the following characteristics: nylon mesh surface lubrication, good ink permeability, can use high viscosity and large particles of ink, so you can get a precise print picture; use ultra-fine mesh weaving mesh, suitable for thin lines Painting drawings and dot printing; flexible, suitable softness, good adaptability to substrates, suitable for printing on bumps and curved surfaces; good tensile strength, knot fastness, elasticity and conflict resistance, long service life It has good function of acid resistance, chemicals and organic solvents, and it is easy to recycle. It is extremely resistant to alkali.

   The use of nylon mesh should pay attention to the following points: Compared with polyester and silkworm mesh, nylon mesh has a large elongation, so as not to make it shape; if it is printed, it is necessary to increase the tension of the stretcher, and the shortening force will also become larger. Therefore, it is required to use a strong frame and a stretcher; because of its low heat resistance,if the mesh is fixed on the frame by hot-melting method, it is difficult from the operational point of view, and is not resistant to strongacid, rock carbonic acid, Corrosion of cresol, formic acid, etc.; UV has a slight influence on it, and it is important to avoid light when it is kept.

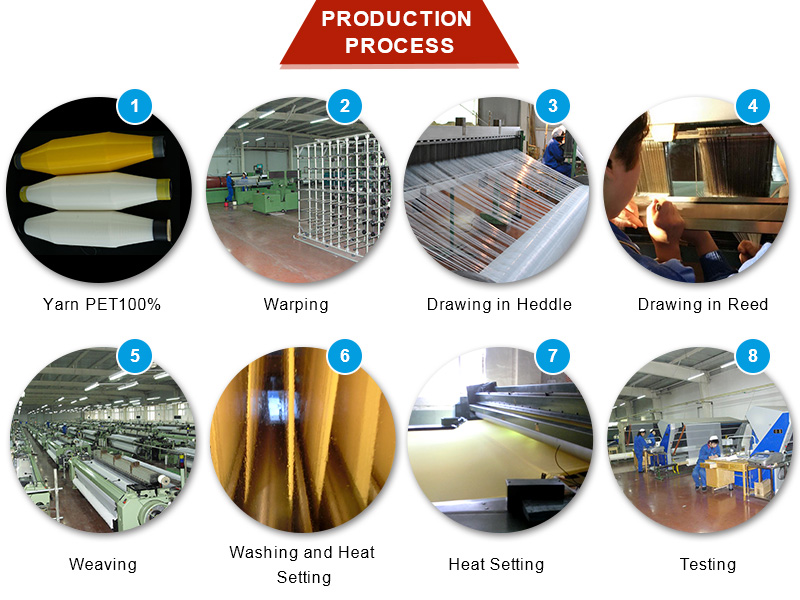

production-process

packaging


3-yijin

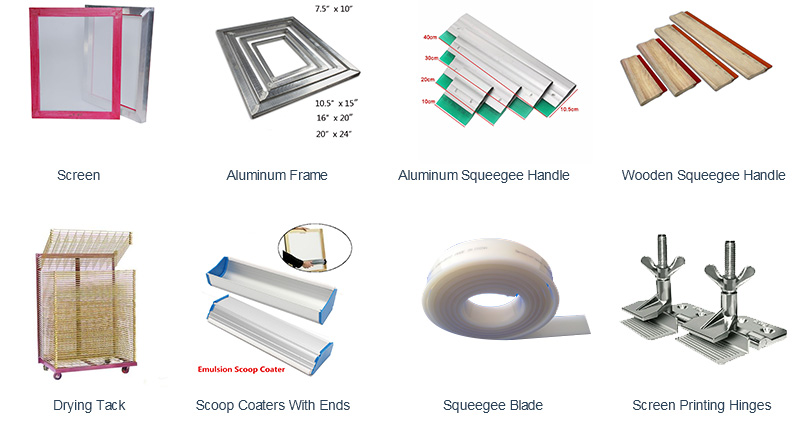

Printing Accessories

4-yijin


Mesh Count
  Diameter
  (Mesh/inch μm)

Mesh
  Count
  (Mesh
  /Inch)

Weave

Aperture
  (μm)

Thread
  Diameter
  (μm)

Opening
   (%)

Thickness(μm)

Thickness
  Tollerance
  (+/- μm)

Theoretical
  lnk(cm3/m2)

Weight
  (g/m2)

Tension(N)

12-250

30

1:1

583

250

49

490

20

228

117

50

13-150PW(SL)

33

1:1

619

150

64

300

14

128

60

49

16-200

40

1:1

425

200

46

400

18

172

148

48

18-180pw

45

1:1

375

180

46

350

22

151


47

20-120PW(T)

50

1:1

380

120

58

210

11

122

76

45

21-80pw(S)

55

1:1

296

80

69

120

9

79

35

43

21-150PW(SL)

55

1:1

326

150

46

260

14

118

121

50

24-100PW(T)

60

1:1

316

100

57

136

11

65

81

49

28-140PW(SL)

70

1:1

217

140

40

195

13

76

125

52

32-55PW(S)

81

1:1

257

55

67

103

6

67

28

27

32-64PW(S)

81

1:1

248

64

63

95

6

56

32

35

32-100PW(T)

81

1:1

212

100

45

165

8

73

75

48.5

36-90PW(T)

92

1:1

183

90

44

150

8

65

68

47

39-55PW(S)

100

1:1

177

55

56

88

6

55

30

29

40-80PW(T)

103

1:1

166

80

44

133

7

59

60

43

43-80PW(T)

110

1:1

149

80

41

130

7

53

64

31

47-45PW(S)

120

1:1

166

45*2

61

80

6

42

40

35

47-55PW(S)

120

1:1

152

55

51

88

6

48

34

29

48-70PW(T)

122

1:1

133

70

41

115

6

47

55

30

53-45PW(S)

135

1:1

143

45*2

57

79

7

41

46

33

53-55PW(S)

135

1:1

133

55

50

86

6

42

40

35

54-64PW(T)

137

1:1

115

64

39

100

5

39

51

30

54-70(PW)HD

137

1:1

109

70

35

116

6

40

62

31

61-64PW(T)

155

1:1

90

64

31

101

5

30

58

36

64-55PW(S)

160

1:1

98

55

38

98

5

36

48

30

64-64PW(T)

160

1:1

85

64

30

115

6

34

61

31

68-55PW(S)

175

1:1

85

55

34

85

4

28

48

34

68-64PW(T)

175

1:1

78

64

28

105

5

30

65

40

72-48PW(S)

182

1:1

90

48

36

78

5

33

39

28

72-55PW(T)

182

1:1

85

55

30

90

5

27

51

29

77-48PW(S)

195

1:1

77

48

35

80

4

28

42

35

77-55PW(T)

195

1:1

67

55

27

88

4

24

55

37

80-48PW(T)

200

1:1

72

48

33

74

4

25

56

27

90-48PW(T)

230

1:1

56

48

25

78

4

19

50

25

100-40PW(T)

255

1:1

58

40

33

63

3

21

37

28.5

110-40PW(HD)

280

1:1

48

40

27

64

3

17

40

29

120-31PW(S)

305

1:1

49

31

35

49

3

17

26

21

120-34PW(T)

305

1:1

45

34

30

55

3

16

35

30.5

120-40PW(HD)

305

1:1

37

40

20

63

3

13

44

35

130-34PW(T)

330

1:1

40

34

27

55

3

15

37

28

140-31PW(S)

355

1:1

36

31

26

48

2

12

30

23

140-34PW(T)

355

1:1

31

34

20

53

3

10

39

31

140-34TW(T)

355

1:1

33

34

21

56

3

12

41

28

150-31PW(S)

380

1:1

32

31

23

49

3

11

32

30.5

150-34PW(T)

380

1:1

23

34

13

55

3

6.5

42

30.5

165-34PW(S)

420

1:1

23

31

15

48

2

7

36

30.5

180-27PW(S)

460

1:1

23

27

16

43

2.5

7

31

27

PW:(Plain Weave);TW:(Twill Weave); S T HD:(thickness of Mesh)
  Standard Color: white and yellow, other colors on request.

Special specifications can be produced by the customer's requirements.
