R&K
China
ISO9001 FDA SGS
Xingang, Tianjin
1m
50000m per month
L/C,T/T,paypal,western union,Ali express
| Quantity: | |
|---|---|

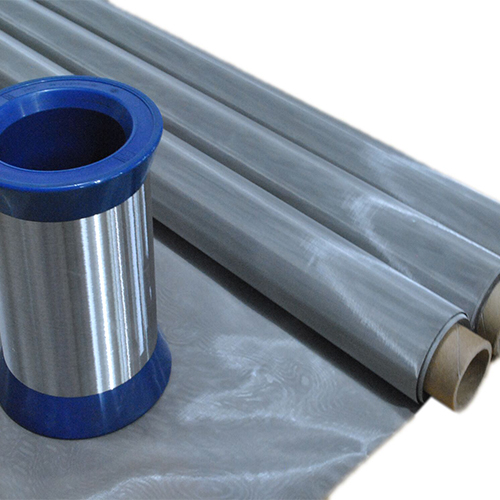

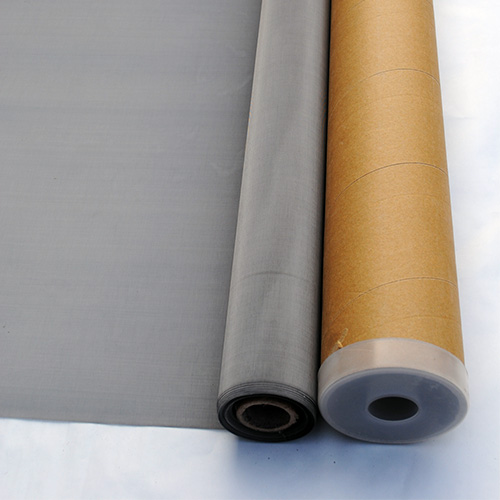

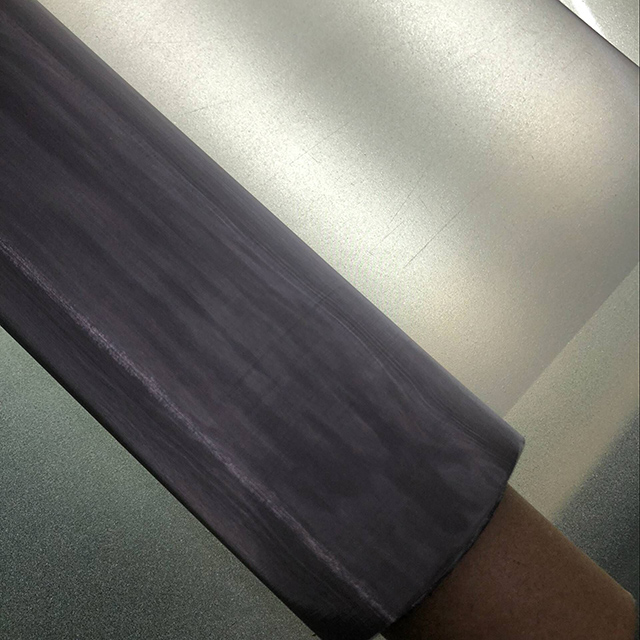

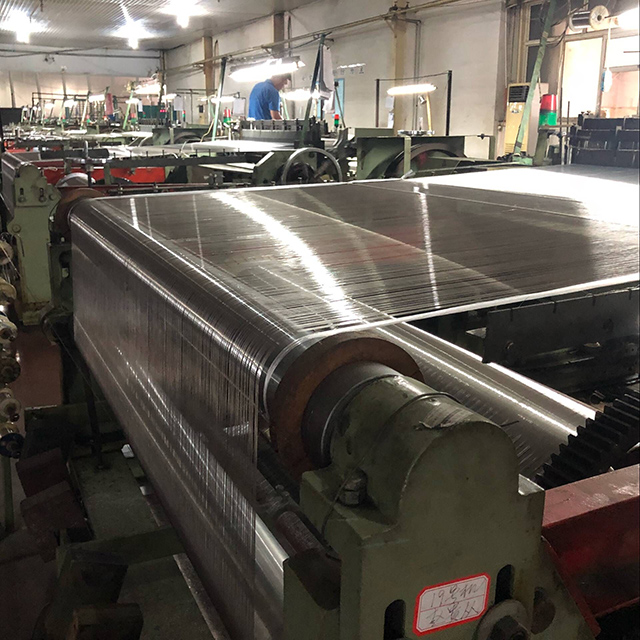

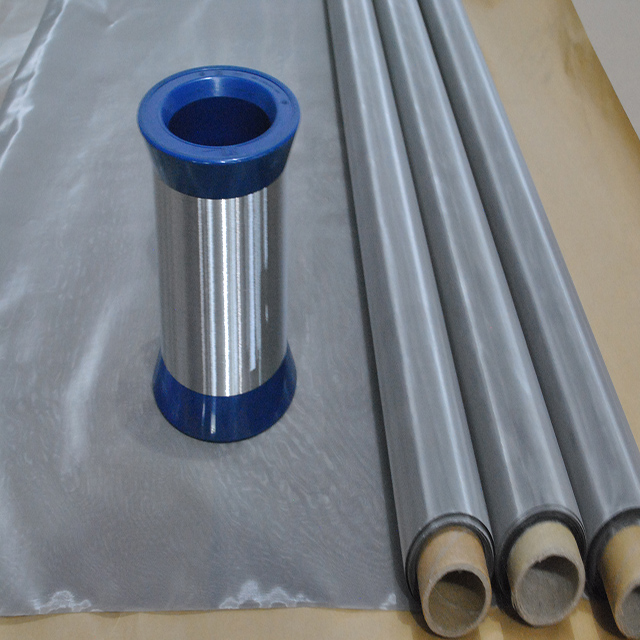

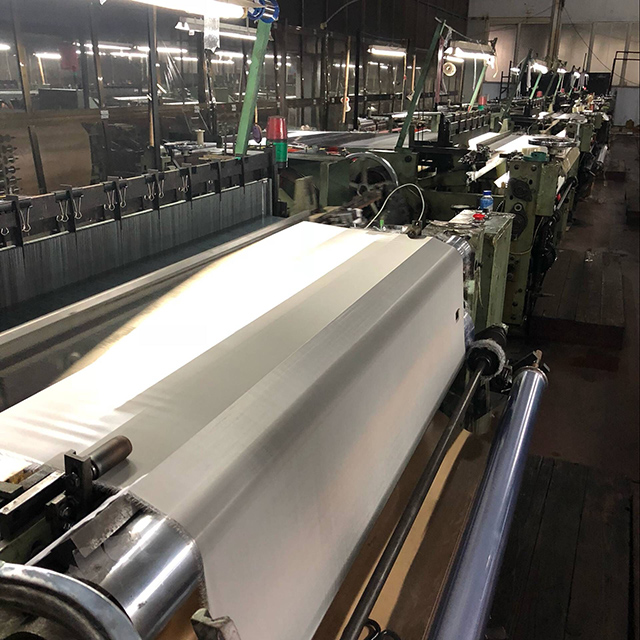

Reking Filtration is the name behind a comprehensive range of precision woven stainless steel meshes designed specifically for the screen printing industry. These precision products, many of which are produced on state of the art looms by skilled craftsmen, can meet even the most stringent demands of the electronics printing industry.
Precision of woven stainless steel meshes for printing on glass & ceramics are as follows:
Material: SUS304N,304HP,316L
Weave: Plain weave
Width/Length: Widths held in stock include 1020mm (40"), 1220mm (48") und 1530mm (60")
Standard roll length: 30.5m ( 100 ft )
Please enquire for widths up to 2500mm (100"), other lengths and sections.
Features: • High precision of the mesh openings • Uniform weave (no mesh striping) • Exceptionally high yield point • Very narrow thickness tolerances • Large open area • Firm mesh binding • Easy to use (flat lying, no curl) • No static charge | Applications: • Printed circuit boards • Multilayers • Thick film • Soldering pastes for SMT • Keypads • Scales • Glass printing • Ceramic printing | • Clean |
• Optimum aperture precision | Characteristics : • High tension • Low elongation • High flexibility • High corrosion resistance • Non-electrostatic • Good heat-melting resistance • Good solvent resistance • No static charge | Applications : • Printed circuit boards • Multilayers • Thick film • Soldering pastes • Keypads • Scales • Glass printing • aviation |
Stainless steel screen printing calendered mesh:

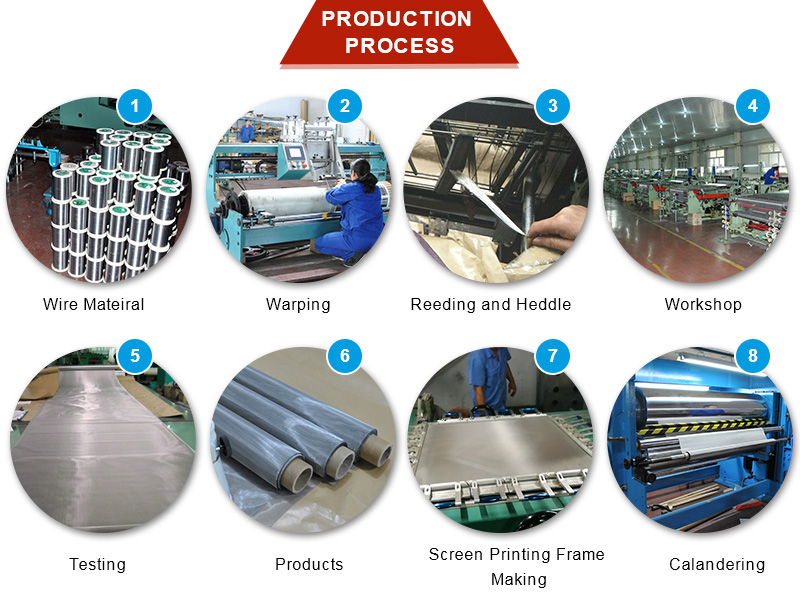

Most stainless steel mesh can be calendered. The calendering process flattens the knuckles of the wires, reducing the overall thickness of the mesh while greatly improving thickness tolerance.
Special specifications can be produced by the customer's requirements.
Specification | Mesh/inch | WireDia.(µm | Open area Ratio(%) | Aperture(µm) | Thickness(µm) | Calendered Thickness(µm) | Theoretical Ink (cm3/m2) |
40x40x160 | 40 | 160 | 56 | 475 | 300--320 | As order | 179.1 |
60x60x120 | 60 | 120 | 51.3 | 303 | 230--245 | As order | 123.2 |
80x80x120 | 80 | 120 | 39 | 198 | 235--245 | As order | 92.9 |
80x80x90 | 80 | 90 | 52 | 228 | 175--180 | As order | 103 |
80x80x50 | 80 | 50 | 71 | 268 | 95--100 | As order | 78 |
100x100x100 | 100 | 100 | 36.8 | 154 | 195--205 | As order | 77.2 |
120x120x80 | 120 | 80 | 39 | 132 | 155--165 | As order | 65.8 |
150x150x60 | 150 | 60 | 41.7 | 109 | 115--124 | As order | 50 |
165x165x35 | 165 | 35 | 60 | 119 | 70--75 | As order | 48 |
165x165x45 | 165 | 45 | 50.1 | 109 | 88--93 | As order | 45.1 |
165x165x50 | 165 | 50 | 45.6 | 104 | 97--105 | As order | 45.6 |
180x180x45 | 180 | 45 | 46.4 | 96 | 88--93 | As order | 41.5 |
180x180x50 | 180 | 50 | 42 | 91 | 98--104 | As order | 41.7 |
200x200x40 | 200 | 40 | 46.9 | 87 | 82--84 | As order | 43 |
200x200x50 | 200 | 50 | 37 | 77 | 98--103 | As order | 42 |
230x230x35 | 230 | 35 | 46.7 | 75 | 72--76 | 50-67 | 37 |
250x250x40 | 250 | 40 | 36.8 | 62 | 82--86 | 50-80 | 34 |
250x250x30 | 250 | 30 | 49.7 | 72 | 64--68 | 40-58 | 30 |
250x250x35 | 250 | 35 | 43 | 67 | 76--78 | 57-70 | 32 |
270x270x35 | 270 | 35 | 39.4 | 59 | 76--80 | 58-70 | 30 |
300x300x30 | 300 | 30 | 41.7 | 55 | 66--68 | 40-59 | 28 |
325x325x30 | 325 | 30 | 38 | 48 | 66--68 | 45-60 | 24 |
325x325x28 | 325 | 28 | 41.2 | 50 | 63--64 | 40-56 | 26.4 |
325x325x23 | 325 | 23 | 49.8 | 55 | 49--53 | 37-41 | 25.4 |
350x350x25 | 350 | 25 | 43 | 48 | 52--54 | 41-50 | 18.7 |
400x400x23 | 400 | 23 | 40.7 | 41 | 50--54 | 35-48 | 19 |
400x400x18 | 400 | 18 | 51.3 | 46 | 36--40 | 28-30 | 20 |
500x500x18 | 500 | 18 | 41.7 | 33 | 36--40 | 23-29 | 15.3 |
Special specifications can be produced by the customer's requirements.
