Nylon Filter Mesh/Polyester Filter Mesh/Flour Milling Mesh

Brand Name:
R&K
Place of Origin:
China
Quality Inspection:
ISO9001 FDA SGS
Port:
Xingang, Tianjin
Minimum Order Quantity:
1m
Supply Ability:
50000m per month
Payment Terms:
L/C,T/T,paypal,western union,Ali express

Availability:

Quantity:



Inquire Add to Basket

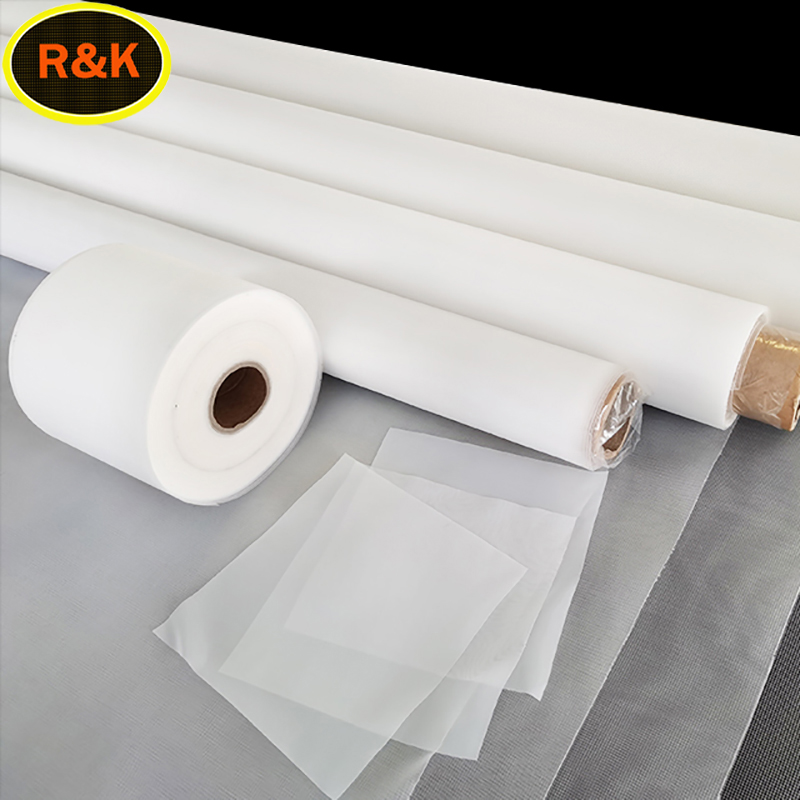

Nylon Filter Mesh with mesh openings ranging from 37 to 1500 µm. Nylon filter mesh are compatible with a broad range of solvents. Width: 1.0meter-3.2metersMesh Count: 5-480 meshes/inch

Features
.Hydrophilic
.Compatible with a broad range of solvents

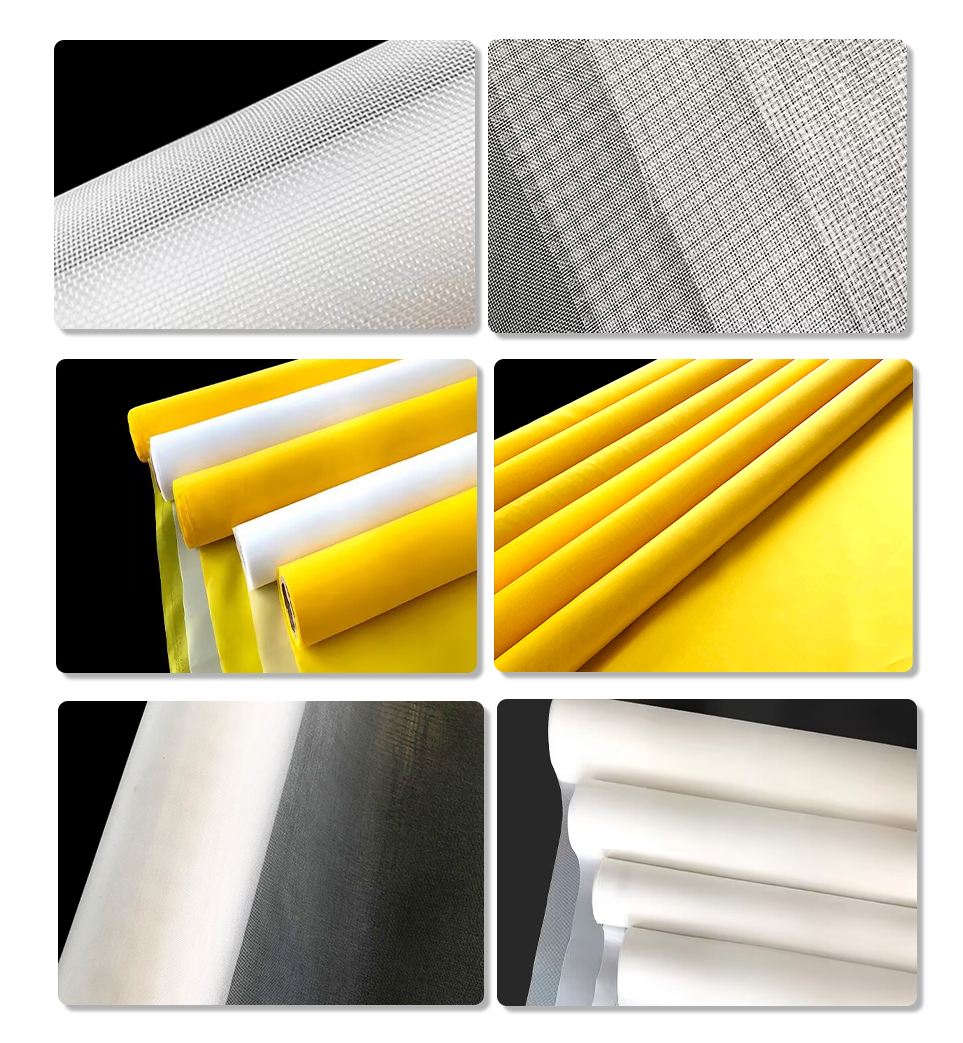

拼图2

2-yijin

.Collection of algae and cells
.Particle analysis
.Large particulate filtration
.Background filter for automated particle imaging systems
.Pre-filtration of solvents
.Paint monitoring
.Medical Filtration (Blood Filtration)

application

4-yijin

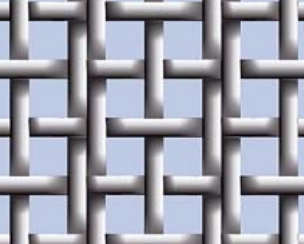

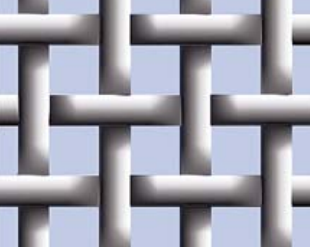

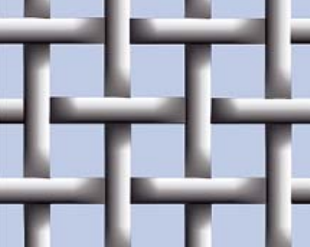

1 PA-GG Nylon Flour Mesh: Plain weave,mono filament and double filament.Material including polyester and nylon(PA6 and PA66).Widely used in milling industry,such as flour milling, corn milling, and other grains milling.
2.PA-XX Nylon Flour Mesh: With high extraction, and quality can meet to FDA standard.Mesh opening can reach 80micron,can be used for ultra fine flour milling. Including nylon,polyester and stainless materials,standard width127cm/145cm/165cm,also can be made as your request.
3.PA-XXX Nylon Flour Mesh: With high extraction, and quality can meet to FDA standard.Mesh opening can reach 80micron,can be used for ultra fine flour milling.Including nylon,polyester and stainless materials,standard width127cm/145cm/165cm,also can be made as your request.

Product No.	Mesh Opening	Open Area	Mesh Count		Thread Diameter	Weight		Thickness	Permeabilità all’aria 20 mm CA
	µm	%	n/cm	n/inch	µm	g/m2	oz/sq.yd	µm	l/ m2s
RK7/2	7	2	200x230	508x585	30x38	52	1,5	78	90
RK10/4	10	4	200x220	508x560	30x38	50	1,5	78	175
RK15/11	15	11	205x220	520x560	30	38	1,1	58	650
RK18/14	18	14	205	521	30	35	1	57	1050
RK21/17	21	17	200	508	30	34	1	65	1315
RK25/21	25	21	180	457	30	31	0,9	60	3300
RK25/15	25	15	165	419	37	42	1,2	75	1600
RK30/25	30	25	165	419	30	28	0,8	59	3100
RK30/19	30	19	145	368	37	40	1,2	64	1925
RK31/21	31	21	150	381	37	40	1,2	68	2300
RK32/20	32	20	140	356	37	36	1,1	68	2800
RK34/26	34	26	150	381	30	26	0,8	50	3050
RK35/27	35	27	150	381	30	26	0,8	57	4100
RK38/28	38	28	140	356	30	25	0,7	53	4100
RK40/26	40	26	130	330	38	36	1,1	74	3300
RK42/25	42	25	120	305	38	35	1	67	3325
RK44/27	44	27	120	305	38	35	1	72	4000
RK45/29	45	29	120	305	35	28	0,8	60	4575
RK50/27	50	27	105	267	44	38	1,1	81	3750
RK52/32	52	32	110	279	38	30	0,9	70	4500
RK55/43	55	43	120	305	30	20	0,6	52	5600
RK56/31	56	31	100	254	44	36	1,1	81	4300
RK60/32	60	32	92	234	44	35	1	75	n.a.
RK60/29	60	29	90	229	50	41	1,2	85	4550
RK62/40	62	40	100	254	37	26	0,8	66	5560
RK64/47	64	47	105	267	30	18	0,5	55	6900
RK64/25	64	25	77	196	61	55	1,6	109	3750
RK68/37	68	37	90	229	44	32	0,9	75	5300
RK70/49	70	49	100	254	30	17	0,5	53	7400
RK75/23	75	23	62	157	80	74	2,2	140	3825
RK79/39	79	39	81	206	50	36	1,1	87	5480
RK80/37	80	37	77	196	50	34	1	83	6000
RK80/32	80	32	71	180	61	50	1,5	111	5075
RK85/49	85	49	81	206	37	21	0,6	64	7650
RK87/29	87	29	62	157	70	63	1,9	135	4680
RK90/35	90	35	66	168	61	46	1,4	108	5600

RK95/38	95	38	92	234	44	34	1	110	6825
RK100/38	100	38	62	157	61	43	1,3	104	6300
RK100/32	100	32	57	145	70	57	1,6	130	n.a.
RK105/32	105	32	55	140	80	66	1,9	140	5200
RK112/42	112	42	57,5	146	61	40	1,2	122	n.a.
RK115/37	115	37	55	140	70	52	1,5	120	6100
RK115/35	115	35	51	130	80	61	1,8	140	5725
RK118/41	118	41	53	135	70	49	1,4	130	6475
RK120/44	120	44	55	140	61	38	1,1	110	7400
RK124/45	124	45	55	140	61	39	1,1	122	9153
RK125/38	125	38	49	124	80	57	1,7	145	6300
RK135/42	135	42	49	124	70	47	1,4	127	7200
RK135/39	135	39	46	117	80	55	1,6	135	7050
RK140/36	140	36	43	109	90	72	2,1	175	6150
RK140/55	140	55	55	140	50	24	0,7	84	n.a.
RK150/51	150	51	48	122	61	32	0,9	110	8800
RK153/30	153	30	36	91	120	105	3,1	240	5400
RK155/39	155	39	41	104	90	63	1,9	165	6100
RK155/49	155	49	45	114	90	42	1,2	120	8625
RK160/37	160	37	38	97	100	74	2,2	185	n.a.
RK160/43	160	43	43	109	80	50	1,5	146	7500
RK165/32	165	32	34	86	120	98	2,9	230	5700
RK170/42	170	42	40	102	90	63	1,9	165	7100
RK170/55	170	55	43	109	61	30	0,9	105	8700
RK175/42	175	42	38	97	90	61	1,8	170	7375
RK180/43	180	43	36	91	100	67	2	185	7400
RK185/37	185	37	32	81	120	92	2,7	223	6525
RK195/43	195	43	34	86	100	65	1,9	180	7375
RK200/34	200	34	29,5	75	140	111	3,3	260	5900
RK200/39	200	39	31	79	120	89	2,6	232	n.a.
RK212/40	212	40	30	76	120	86	2,5	220	n.a.
RK215/37	215	37	29	74	140	109	3,2	260	6050
RK220/47	220	47	32	81	100	61	1,8	180	8700
RK225/42	225	42	29	74	120	85	2,5	220	7300
RK235/39	235	39	27	69	140	103	3	260	7100
RK240/44	240	44	28	71	120	79	2,3	225	7925

RK245/43	245	43	27,5	70	120	78	2,3	227	7900
RK250/51	250	51	28,5	72	100	55	1,6	180	9250
RK255/46	255	46	27	69	120	76	2,2	226	8300
RK265/47	265	47	26	66	120	73	2,1	223	8800
RK270/41	270	41	24	61	150	102	3	280	7700
RK275/33	275	33	21	53	195	160	4,7	370	6250
RK275/54	275	54	27	69	100	49	1,4	182	9950
RK280/43	280	43	24	61	140	92	2,7	258	8400
RK280/49	280	49	25	64	120	71	2,1	230	9050
RK300/56	300	56	25	64	100	46	1,4	185	10350
RK300/46	300	46	23	58	140	87	2,6	260	8525
RK300/51	300	51	23,5	60	120	64	1,9	217	8525
RK310/47	310	47	22	56	150	98	2,9	277	8425
RK325/49	325	49	22	56	140	84	2,5	256	9100
RK330/35	330	35	18	46	225	182	5,4	430	5800
RK335/49	335	49	21	53	150	90	2,6	266	9250
RK355/51	355	51	20	51	150	85	2,5	264	9550
RK365/43	365	43	18	46	195	135	4	350	8075
RK375/43	375	43	18	46	180	110	3,2	330	8525
RK400/46	400	46	17	43	195	127	3,7	365	8025
RK410/37	410	37	15	38	250	180	5,3	460	6600
RK420/46	420	46	16,5	42	195	125	3,7	360	8550
RK440/42	440	42	15	38	225	148	4,4	427	8550
RK440/46	440	46	16	41	195	118	3,5	360	8550
RK450/48	450	48	15,5	39	195	112	3,3	360	9050
RK475/49	475	49	15	38	195	110	3,2	355	9750
RK500/47	500	47	14	36	225	138	4,1	450	8800
RK530/49	530	49	13,5	34	225	137	4	422	9475
RK560/51	560	51	13	33	225	130	3,8	430	9075
RK590/52	590	52	12,5	32	225	126	3,7	420	9850
RK600/50	600	50	12	30	250	141	4,1	465	9200
RK600/59	600	59	13	33	180	75	2,2	310	10800
RK630/51	630	51	11,5	29	250	136	4	460	9325
RK660/52	660	52	11	28	250	128	3,8	450	9500
RK700/54	700	54	10,75	27	250	125	3,7	450	9875
RK730/55	730	55	10,5	27	250	120	3,5	450	9975

RK790/54	790	54	9,5	24	280	145	4,3	515	9950
RK830/55	830	55	9	23	280	135	4	510	10000
RK900/47	900	47	8	20	400	240	7,1	780	9300
RK900/56	900	56	8,3	21	300	144	4,2	585	n.a.
RK940/55	940	55	8	20	325	155	4,6	590	10050
RK950/58	950	58	8	20	300	137	4	575	n.a.
RK1000/44	1000	44	6,5	17	500	310	9,1	970	8625
RK1030/57	1030	57	7,5	19	325	147	4,3	600	10300
RK1170/55	1170	55	6,5	17	400	190	5,6	715	10300
RK1250/56	1250	56	6,5x5,75	17x15	400	178	5,2	760	10850
RK1320/56	1320	56	6	15	400	170	5	820	11150
RK1450/62	1450	62	5,5	14	400	160	4,7	725	11000
RK1560/61	1560	61	5	13	450	190	5,6	840	11125
RK1800/61	1800	61	4,5	11	500	205	6	950	11150
RK1920/64	1920	64	4,25	11	500	195	5,7	950	11200

Special specifications can be produced by the customer's requirements.

拼图 2(1)

PA-GG Nylon GGMesh
Reking Items	孔径Aperture（micron）	丝径 Yarn Dia.（micron)	筛网密度 Mesh Count（Mesh/cm）	筛网密度 Mesh Count（Mesh/inch）	开孔率 Open Area（%）	Flour Milling Mesh with mesh openings ranging from 63 to 1800 µm. The flour Milling Mesh is made of materials that comply with food safety regulations material yarn. Including Nylon,Polyester and Stainless Steel yarn material! Reking have flour milling mesh items including:PA-GG PA-XXX PA-MF PA-XX PA-Leno PET-GG SS-304 Features: High efficient Large output Long life use Reliable use Complete product range
RK-PA-12GG	1800	500	4.4	11.2	61
RK-PA-14GG	1600	450	5	12.7	60
RK-PA-15GG	1400	450	5.4	13.7	59
RK-PA-16GG	1320	400	5.8	14.7	59
RK-PA-17GG	1250	400	6.1	15.5	58
RK-PA-18GG	1180	350	6.5	16.5	59
RK-PA-19GG	1120	350	6.7	17	58
RK-PA-20GG	1000	320	7.5	19.1	57
RK-PA-22GG	950	300	8	20.3	57
RK-PA-23GG	900	300	8.3	21.1	56
RK-PA-24GG	850	300	8.7	22.1	53
RK-PA-26GG	800	280	9.4	23.9	53
RK-PA-27GG	750	280	9.7	24.6	52
RK-PA-28GG	710	260	10.5	26.7	53
RK-PA-30GG	670	260	10.8	27.4	53
RK-PA-31GG	630	240	11.5	29.2	53
RK-PA-32GG	600	240	11.9	30.2	51
RK-PA-34GG	560	240	12.3	31.2	49
RK-PA-36GG	530	220	13.3	33.8	50
RK-PA-38GG	500	220	13.7	34.8	47
RK-PA-40GG	475	205	15	38.1	48
RK-PA-42GG	450	200	15.4	39.1	48
RK-PA-44GG	425	200	16	40.6	46
RK-PA-45GG	400	180	16.8	42.7	47
RK-PA-47GG	375	180	17.5	44.5	47
RK-PA-50GG	355	160	19.4	49.3	48
RK-PA-52GG	335	160	20.2	51.3	46
RK-PA-54GG	315	160	21	53.3	44
RK-PA-58GG	300	140	21.7	55.1	45
RK-PA-60GG	280	140	23.8	60.5	45
RK-PA-62GG	275	140	24.1	24.1	44
RK-PA-64GG	265	140	25	63.5	43
RK-PA-66GG	250	120	26.5	67.3	46
RK-PA-68GG	243	120	28	71.1	44
RK-PA-70GG	236	120	28	71.1	44
RK-PA-72GG	224	120	29	73.7	42
RK-PA-74GG	212	120	30	76.2	40

聚酯Polyester-GG
Reking Items	孔径Aperture（micron）	丝径 Yarn Dia.（micron)	筛网密度 Mesh Count（Mesh/cm）	筛网密度 Mesh Count（Mesh/inch）	开孔率 Open Area（%）
RK-PET-12GG	1800	500	4.3	10.9	61
RK-PET-14GG	1600	450	4.9	12.4	61
RK-PET-15GG	1400	450	5.4	13.7	57
RK-PET-16GG	1320	400	5.8	14.7	59
RK-PET-18GG	1180	350	6.5	16.5	60
RK-PET-20GG	1000	320	7.6	19.3	58
RK-PET-22GG	950	300	8	20.3	58
RK-PET-23GG	900	300	8.3	21.1	56
RK-PET-24GG	850	300	8.7	22.1	55
RK-PET-26GG	800	280	9	22.9	55
RK-PET-27GG	750	280	9.7	24.6	53
RK-PET-28GG	710	260	10.3	26.2	54
RK-PET-30GG	670	260	10.7	27.2	52
RK-PET-31GG	630	240	11.5	29.2	53
RK-PET-32GG	600	240	12	30.5	51
RK-PET-34GG	560	240	12.5	31.8	49
RK-PET-36GG	530	220	13.3	33.8	50
RK-PET-38GG	500	220	14	35.6	48
RK-PET-40GG	475	200	15	38.1	49
RK-PET-42GG	450	200	15.4	39.1	48
RK-PET-44GG	425	200	16	40.6	46
RK-PET-45GG	400	180	17.2	43.7	48
RK-PET-47GG	375	180	18	45.7	46
RK-PET-50GG	355	160	19.4	49.3	47
RK-PET-52GG	335	160	20.2	51.3	46
RK-PET-54GG	315	160	21	53.3	44
RK-PET-56GG	300	140	22.5	57.2	46
RK-PET-60GG	280	140	24	61	44
RK-PET-64GG	265	120	26	66	47
RK-PET-66GG	250	120	27	68.6	46
RK-PET-70GG	236	120	28.5	72.4	43
RK-PET-72GG	224	120	29	73.7	42

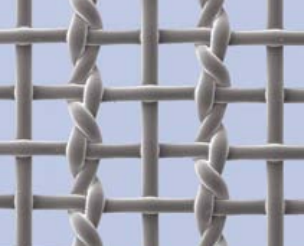

尼龙Nylon-绞织Leno
Reking Items	孔径Aperture（micron）	丝径 Yarn Dia.（micron)	筛网密度 Mesh Count（Mesh/cm）	筛网密度 Mesh Count（Mesh/inch）	开孔率 Open Area（%）
RK-PA-7S	200	80+2X70S 70	32 37	81 94	50
RK-PA-8S	180	80+2X60S 70	36 40	91 102	46
RK-PA-9S	150	70+2X60S 60	41 47	104 119	44
RK-PA-9½S	140	60+2X60S 60	44 50	112 127	43
RK-PA-10½S	125	60+2X50S 60	49 53	124 135	41
RK-PA-12S	112	60+2X50S 50	52 62	132 157	40
RK-PA-13S	100	60+2X50S 60	56 66	142 168	38

尼龙Nylon-XX
Reking Items	孔径Aperture（micron）	丝径 Yarn Dia.（micron)	筛网密度 Mesh Count（Mesh/cm）	筛网密度 Mesh Count（Mesh/inch）	开孔率 Open Area（%）	开孔率（%）
RK-PA-3XX	300	100+2X60	100	24 25	61 64	54
RK-PA-4XX	280	100+2X60	100	25.5 26.5	65 67	53
RK-PA-5XX	250	100+2X60	90	27.5 29	70 74	51
RK-PA-6XX	212	90+2X60	80	32 30	81 76	49
RK-PA-7XX	200	80+2X60	80	33.5 35.7	85 91	48
RK-PA-8XX	180	80+2X60	70	35.7 40	91 102	46
RK-PA-8½XX	160	70+2X60	70	40 43.5	102 111	44
RK-PA-9XX	150	70+2X60	60	42.5 47.6	108 121	44
RK-PA-9½XX	140	60+2X60	60	43 50	109 127	43
RK-PA-10XX	132	60+2X50	60	47 52	119 132	44
RK-PA-10½XX	125	60+2X50	60	48.5 54	123 137	40
RK-PA-11XX	118	60+2X50	50	50.5 59.5	128 151	42
RK-PA-12XX	112	60+2X50	50	51.5 61.5	131 156	40
RK-PA-12½XX	106	60+2X43	50	56 64	142 163	40
RK-PA-13XX	100	60+2X50	50	57 66.7	145 169	38
RK-PA-14XX	95	50+2X43	50	61 69	155 175	38
RK-PA-14½XX	90	50+2X43	50	62.5 71.5	159 182	37
RK-PA-15XX	85	50+2X43	50	65 74	165 188	34
RK-PA-17XX	80	50+2X43	43	68 81	173 206	35
RK-PA-20XX	75	50+2X43	43	70 84.7	178 215	34
RK-PA-21XX	71	50+2X39	43	74 87.7	188 223	33
RK-PA-25XX	63	43+2X43	43	78 94	198 239	30

尼龙Nylon-XXX
Reking Items	孔径 Aperture（micron）	丝径 Yarn Dia.（micron)	筛网密度 Mesh Count（Mesh/cm）	筛网密度 Mesh Count（Mesh/inch）	开孔率 Open Area（%）
RK-PA-3XXX	300	140	21.7	55.1	45
RK-PA-4XXX	280	140	23.8	60.5	45
RK-PA-5XXX	250	120	26.5	67.3	46
RK-PA-6XXX	212	120	30	76.2	40
RK-PA-7XXX	200	120	30	76.2	39
RK-PA-8XXX	180	100	36	91.4	39
RK-PA-8½XXX	160	100	37.5	95.3	37
RK-PA-9XXX	150	90	41	104.1	38
RK-PA-9½XXX	140	90	44	111.8	37
RK-PA-10XXX	132	80	45	114.3	40
RK-PA-10½XXX	125	80	48.8	124	37
RK-PA-11XXX	118	80	49	124.5	34
RK-PA-12XXX	112	70	55	140	38
RK-PA-13XXX	100	70	57	144.8	32
RK-PA-14XXX	95	70	60.6	153.9	33
RK-PA-14½XXX	90	60	67	170.2	36
RK-PA-17XXX	80	60	68	172.7	35

尼龙Nylon-MF
Reking Items	孔径Aperture（micron）	丝径 Yarn Dia.（micron)	筛网密度 Mesh Count（Mesh/cm）	筛网密度 Mesh Count（Mesh/inch）	开孔率 Open Area（%）
RK-PA-3MF	300	120	23.5	59.5	51
RK-PA-4MF	280	120	25	63.5	51
RK-PA-5MF	250	100	28.5	72.5	51
RK-PA-7MF	200	100	32.5	82.5	44
RK-PA-8MF	180	90	36.5	92.5	43
RK-PA-8½MF	160	90	40	101.5	42
RK-PA-9MF	150	80	43	109	42
RK-PA-9½MF	140	80	45	114.5	41
RK-PA-10MF	132	70	49	124.5	43
RK-PA-10½MF	125	70	51	129.5	41
RK-PA-11MF	118	70	53	134.5	41
RK-PA-12MF	112	60	57.5	146	42
RK-PA-13MF	100	60	60	152.5	39

PRODUCT LIST

Nylon Filter Mesh/Polyester Filter Mesh/Flour Milling Mesh

QUICK LINK

PRODUCT CATEGORY

CONTACTS US
